| VHF & UHF | Steel and/or concrete reinforced buildings | High-rise buildings |
| UHF 2 Watt | Up to 270,000 sq. ft. | Up to 23 floors |
| UHF 5 Watt | Up to 450,000 sq. ft. | Up to 42 floors |
| VHF 2 Watt | Up to 220,000 sq. ft. | Up to 13 floors |
| VHF 5 Watt | Up to 330,000 sq. ft. | Up to 18 floors |
| VHF & UHF | Steel and/or concrete reinforced buildings | High-rise buildings |
| UHF 2 Watt | Up to 270,000 sq. ft. | Up to 23 floors |
| UHF 5 Watt | Up to 450,000 sq. ft. | Up to 42 floors |
| VHF 2 Watt | Up to 220,000 sq. ft. | Up to 13 floors |
| VHF 5 Watt | Up to 330,000 sq. ft. | Up to 18 floors |

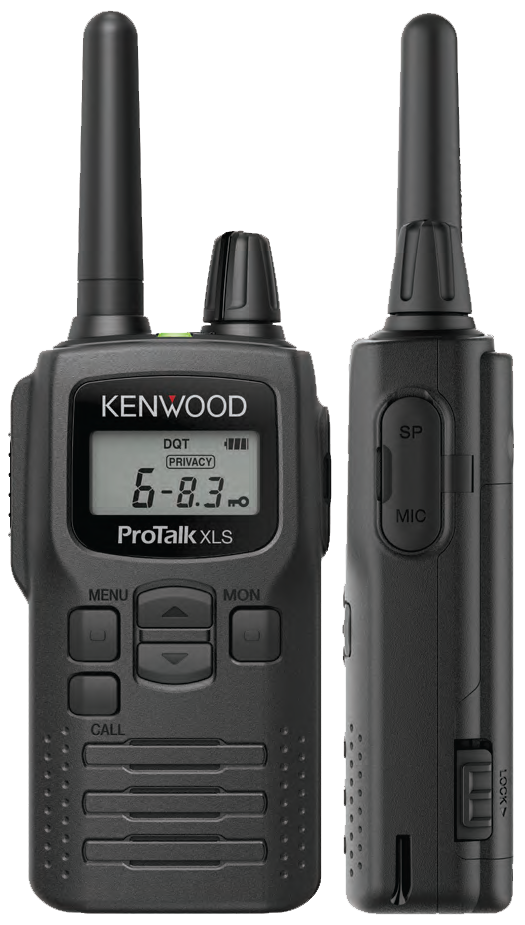

 PKT-300 |  NX-P1302AUK |  NX-P1300AUK |  NX-P1300NUK | |
| | | | |
| Power Output | 2W UHF | 2W UHF* | 5W UHF* | 5W UHF* |
| Max Channels | 16 | 64 | 64 | 64 |
| Number of Zones | 0 | 4 | 4 | 4 |
| Battery Life | 14 hours | 12 hours | 12 hours | 12 hours |
| Battery Saver |  | | | |
| Battery mAh Rating | 2,200 mAh / 2,550 mAh Li-Ion | 2,000 mAh / 2,550 mAh Li-Ion | 2,000 mAh / 2,550 mAh Li-Ion | 2,000 mAh / 2,550 mAh Li-Ion |
| Cloning | | | | |
| Military Specifications | Mil-Std 810, C, D, E, F, G, H | Mil-Std 810, C, D, E, F, G | Mil-Std 810, C, D, E, F, G | Mil-Std 810, C, D, E, F, G |
| IP Rating | IP52/55 | IP54/55 | IP54/55 | IP54/55 |
| Analog | | | | |
| Digital | N/A | Upgrade to digital with license key | Upgrade to digital with license key | NXDN or DMR • Group / Individual Call • Site Roaming • Remote Stun / Kill, Monitor, Check & Control |
| IS Option | | | ||
| Range | 270,000sq ft, 23 floors | 270,000sq ft, 23 floors | 450,000sq ft, 42 floors | 550,000sq ft, 50 floor |
| Warranty | 2 Year | 3 Year | 3 Year | 3 Year |

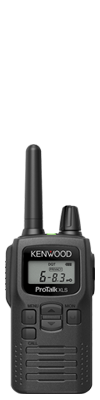

| hide-cell | PKT-300 |
| hide-cell | |
| Power Output | 2W UHF |
| Max Channels | 16 |
| Number of Zones | 0 |
| Battery Life | 14 hours |
| Battery Saver | |
| Battery mAh Rating | 2,200 mAh / 2,550 mAh Li-Ion |
| Cloning | |
| Military Specifications | Mil-Std 810, C, D, E, F, G, H |
| IP Rating | IP52/55 |
| Analog | |
| Digital | N/A |
| IS Option | |
| Range | 270,000sq ft, 23 floors |
| Warranty | 2 Year |

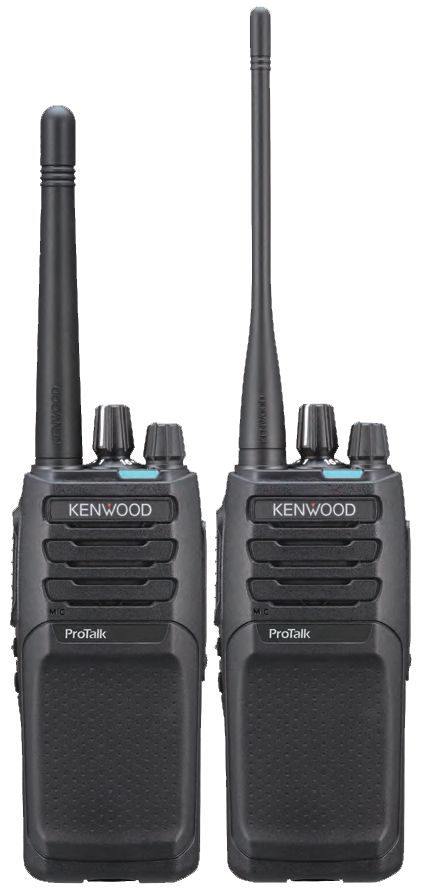

| hide-cell | NX-P1302AUK |
| hide-cell | |
| Power Output | 2W UHF* |
| Max Channels | 64 |
| Number of Zones | 4 |
| Battery Life | 12 hours |
| Battery Saver | |
| Battery mAh Rating | 2,000 mAh / 2,550 mAh Li-Ion |
| Cloning | |
| Military Specifications | Mil-Std 810, C, D, E, F, G |
| IP Rating | IP54/55 |
| Analog | |
| Digital | Upgrade to digital with license key |
| IS Option | |
| Range | 270,000sq ft, 23 floors |
| Warranty | 3 Year |

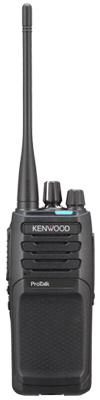

| hide-cell | NX-P1300AUK |
| hide-cell | |
| Power Output | 5W UHF* |
| Max Channels | 64 |
| Number of Zones | 4 |
| Battery Life | 12 hours |
| Battery Saver | |
| Battery mAh Rating | 2,000 mAh / 2,550 mAh Li-Ion |
| Cloning | |
| Military Specifications | Mil-Std 810, C, D, E, F, G |
| IP Rating | IP54/55 |
| Analog | |
| Digital | Upgrade to digital with license key |
| IS Option | |
| Range | 450,000sq ft, 42 floors |
| Warranty | 3 Year |

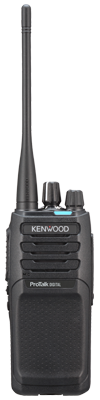

| hide-cell | NX-P1300NUK |
| hide-cell | |
| Power Output | 5W UHF* |
| Max Channels | 64 |
| Number of Zones | 4 |
| Battery Life | 12 hours |
| Battery Saver | |
| Battery mAh Rating | 2,000 mAh / 2,550 mAh Li-Ion |
| Cloning | |
| Military Specifications | Mil-Std 810, C, D, E, F, G |
| IP Rating | IP54/55 |
| Analog | |
| Digital | NXDN or DMR • Group / Individual Call • Site Roaming • Remote Stun / Kill, Monitor, Check & Control |
| IS Option | |
| Range | 550,000sq ft, 50 floor |
| Warranty | 3 Year |
NX-P1200ISNVK/NX-P1300ISNUK: The NX-P1200NVK/P1300NUK portables offer an Intrinsically Safe Option approved for Class I, Div. 1, Group D and are also approved for non-Incendive use in Class I, Div. 2, Groups A, B, C, D hazardous locations.
Customize at Will
The NX-P1000 Series supports FM Analog and NXDN digital operation, enabling a migration to digital at your pace.
FM Analog
FM analog protocol is offered in *25 kHz and narrow 12.5 kHz channel spacing, as well as conventional operation with QT/DQT and FleetSync signalling protocol.
NXDN Digital Protocol
NXDN supports both channel bandwidths of 12.5 kHz and 6.25 kHz bandwidth using FDMA technology. NXDN provides excellent spectrum efficiency, wide coverage and scalability.
DMR Digital Protocol
Ability to upgrade from ProTalk analog to DMR Tier 2 when you’re ready. DMR offers two talk paths within a 12.5 kHz bandwidth, effectively doubling the capacity for a single license and/or repeater.
* Some limitations apply in certain regions when configuring wide channel spacing.
Robust & Water Resistant
The NX-P1000 radios are subjected to rigorous tests including immersion, drop, splash, key punch, extreme temperatures, dust, and heavy rain, both with and without the KMC=45 optional speaker microphone. These simulate the harsh operating conditions of many jobs. The radios also meet international ingress protection standards, including IP54* and IP55, plus U.S. Department of Defense Mil-Std 810 C to G standards. *Accessory connection must be covered.
Kenwood has many years of experience producing professional, high quality audio products, which is evident in the high-quality digital audio produced by the NX-P1000.
Voice announcements keep you informed when a newly selected zone/channel or function is selected, reception status or when a PTT button is engaged.
Customize the radio programming one time and use the optional closing cable to rapidly program groups of ProTalk radios with the same settings.

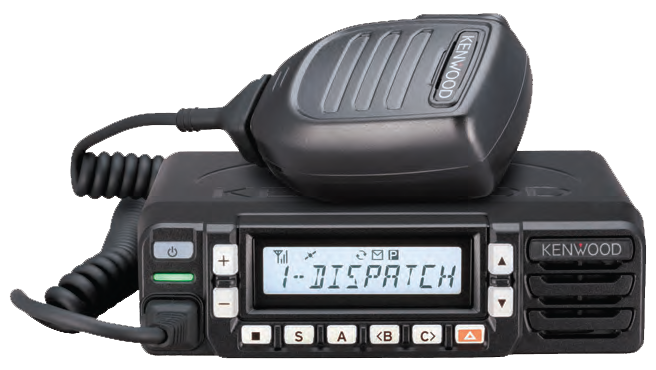

The NX-1700H
The KAS-20 Software provides AVL and Dispatch capability compatible with Kenwood digital radio systems.

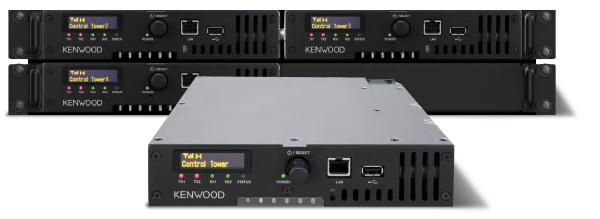

The KENWOOD NXR-1700/1800 repeater continues a tradition of migration friendly and innovative infrastructure to offer the ultimate in modern scalability and security for analog, NXDN and DMR two-way systems.

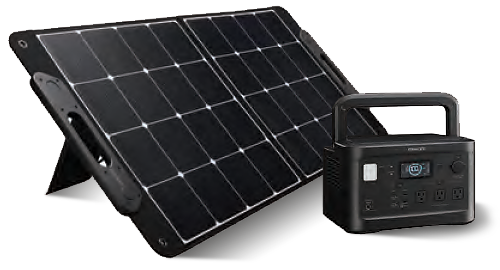

600W OUTPUT, 512Wh CAPACITY
The LiFePO4 lithium iron phosphate battery is designed to deliver optimal performance with advanced features that ensure longevity and reliability.
